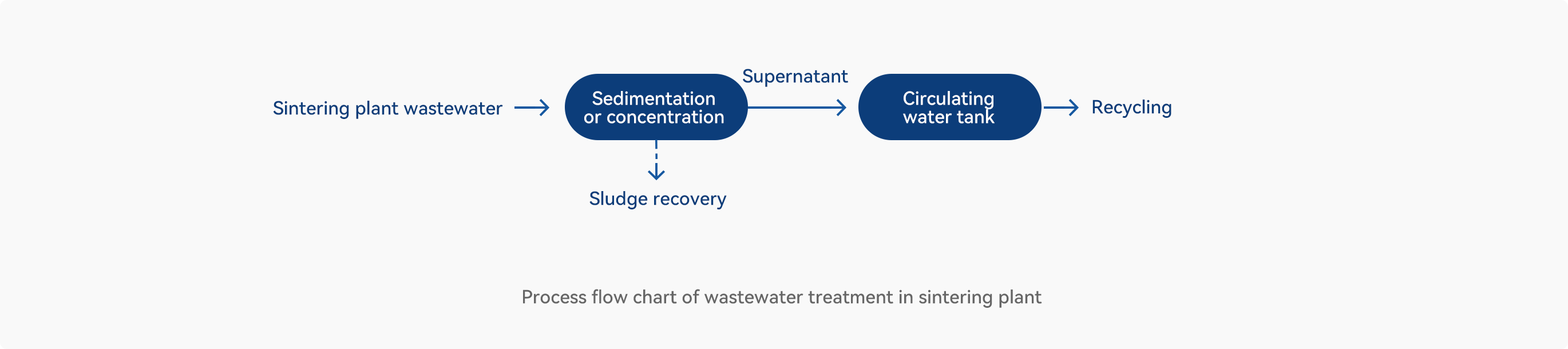

The wastewater from the sintering plant is recycled after sedimentation or concentration treatment.

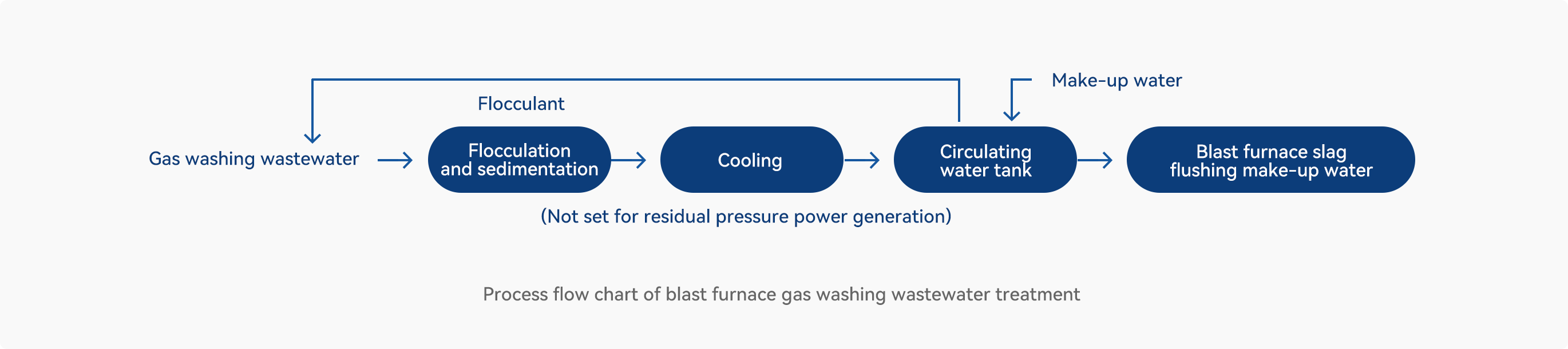

The blast furnace gas washing wastewater is suitable to be recycled after being treated by the process shown. The forced blowdown water of the circulating water system should be used as make-up water for the blast furnace slag flushing system.

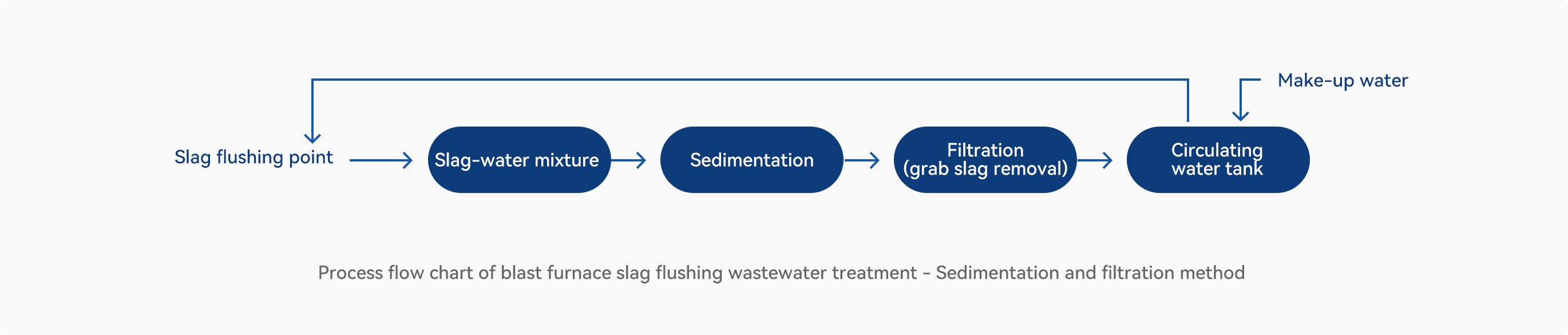

The blast furnace slag flushing wastewater is suitable to be recycled after being treated by the processes shown.

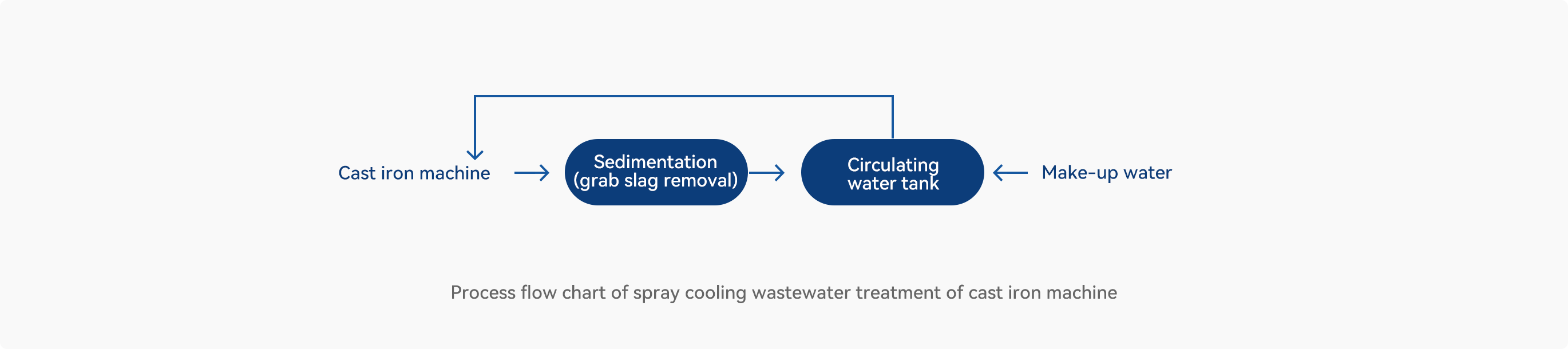

铸铁机铸块喷淋冷却废水宜采用图7所示处理工艺后循环使用。

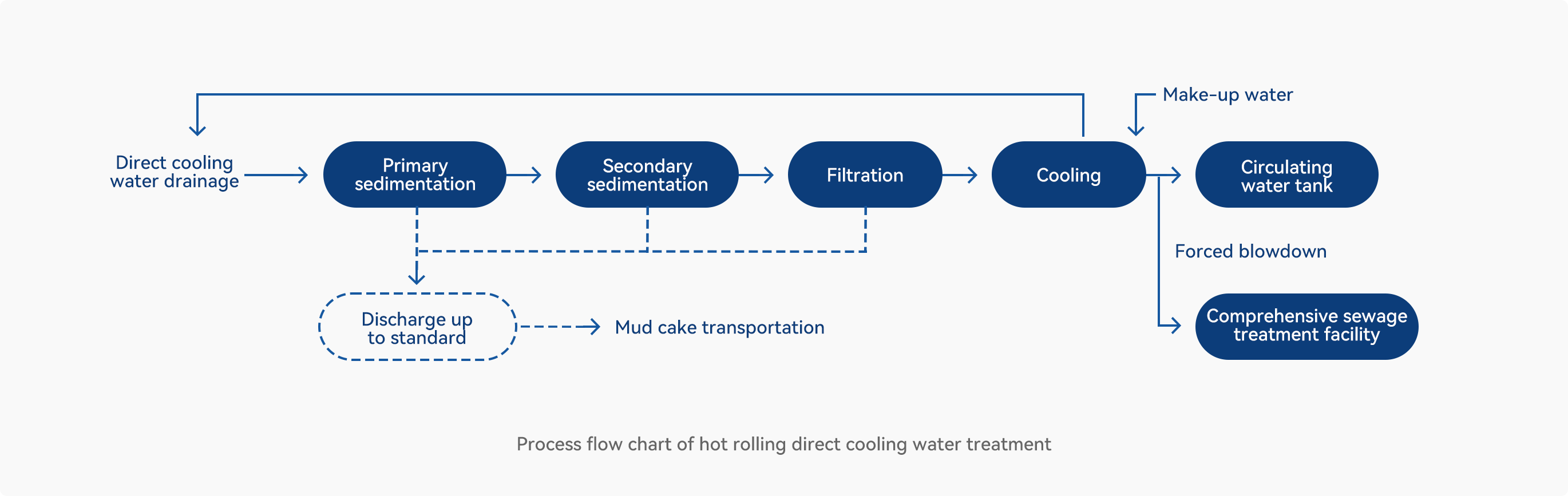

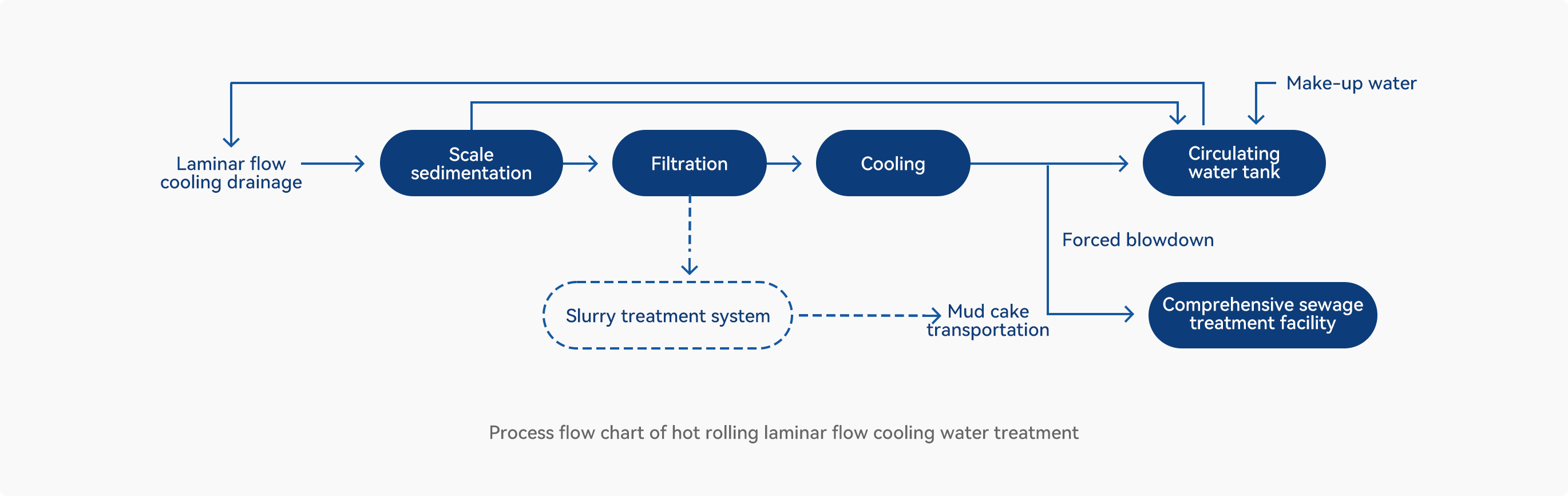

The wastewater from the production unit of the hot rolling plant is mainly the direct cooling water drainage of rolling steel plants such as steel plates, steel pipes, section steels, and wire rods. The wastewater is suitable to be recycled after being treated by the processes shown in Figures 12, 13, and 14. A small amount of system forced blowdown water is discharged to the comprehensive sewage treatment facility. For forced blowdown water, SS≤30mg/L, oil≤5mg/L, and water temperature≤35°C.

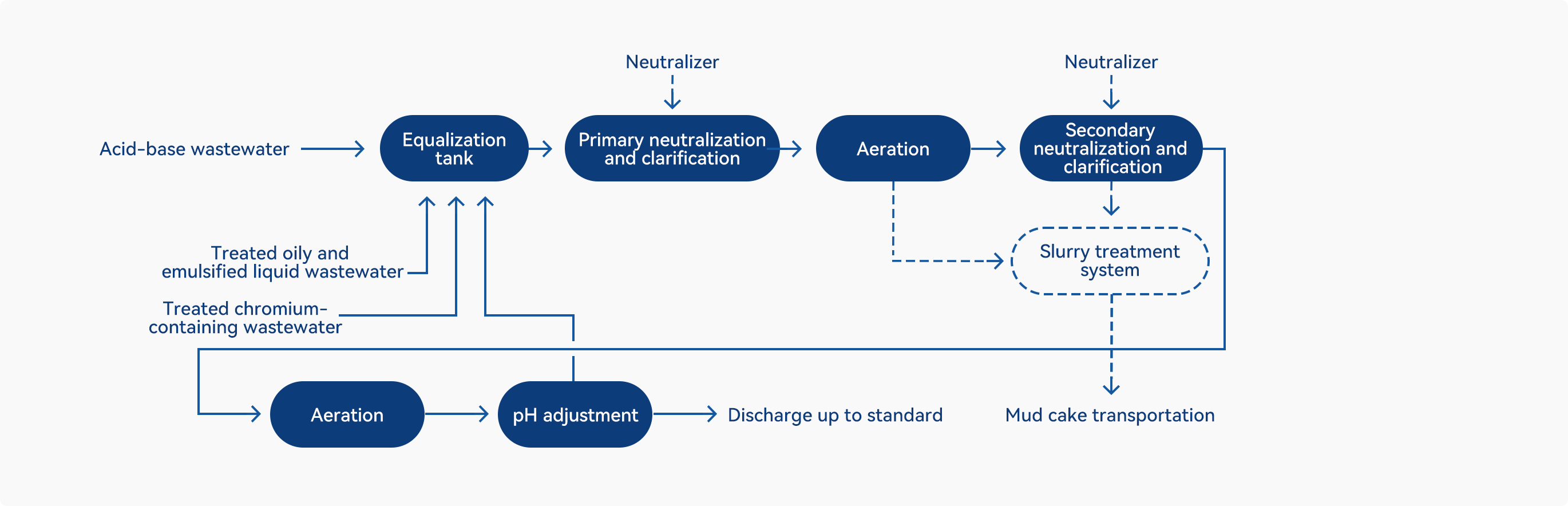

There are many types of wastewater in the production unit of the cold rolling plant, mainly including acid-base wastewater, oily and emulsified liquid wastewater, and chromium-containing wastewater, which should be treated separately by each treatment system. The treated oily and emulsified liquid wastewater and chromium-containing wastewater are discharged into the acid-base wastewater treatment system for unified treatment, and then discharged externally up to the standard.

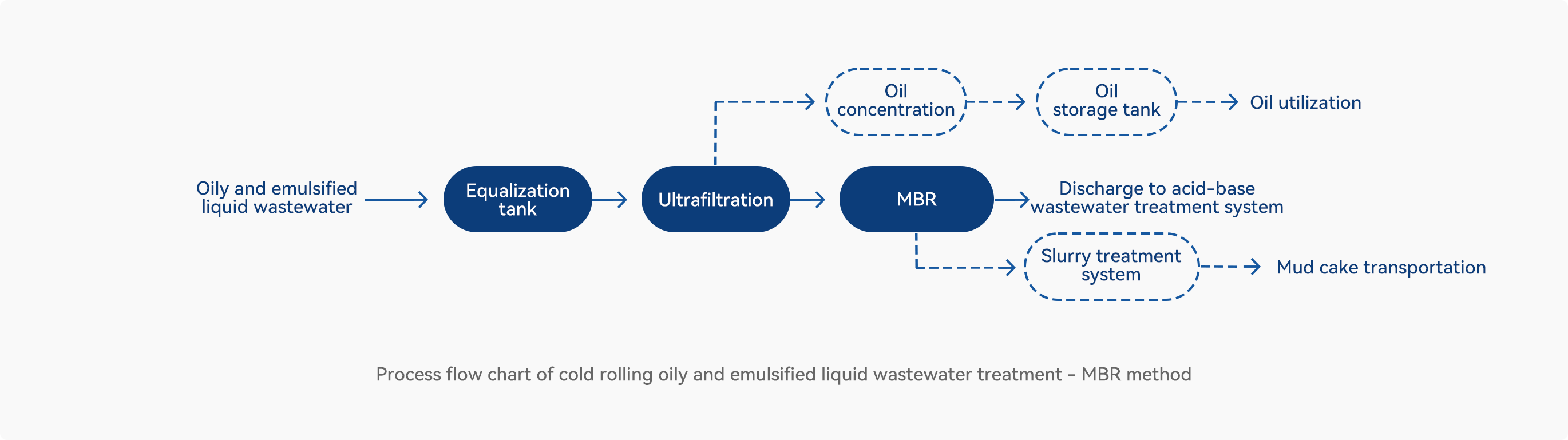

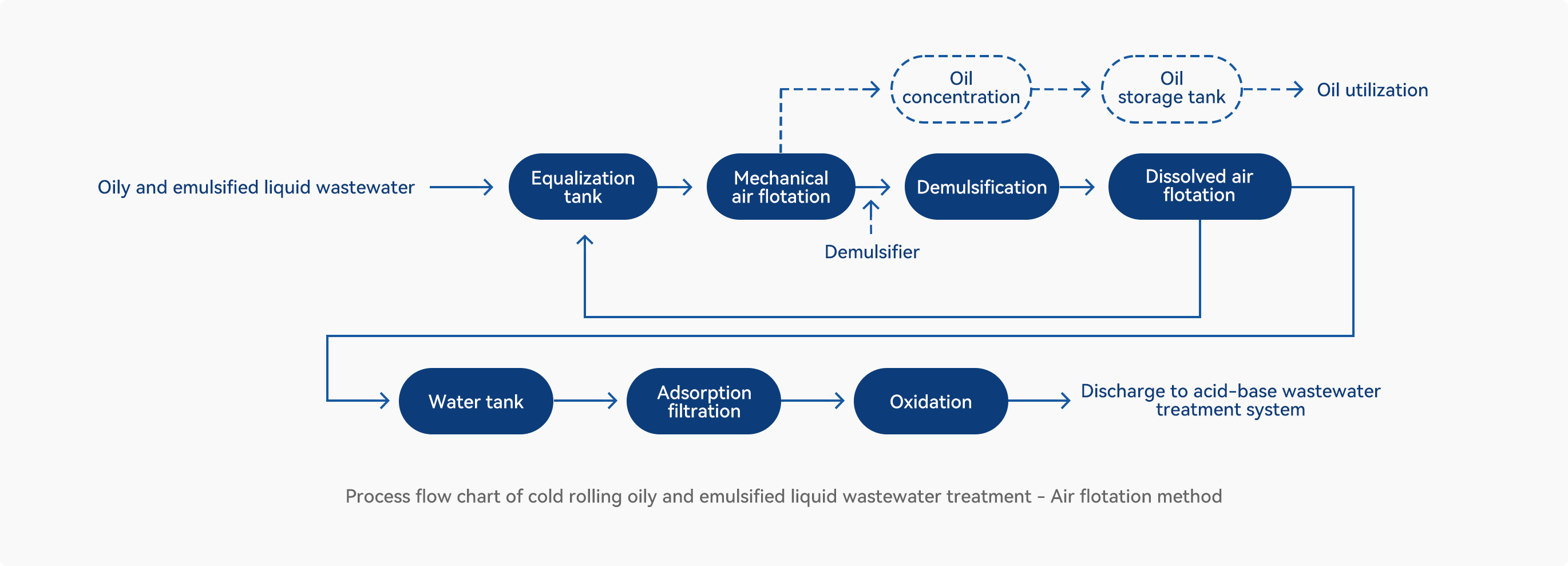

Oily and emulsified liquid wastewater

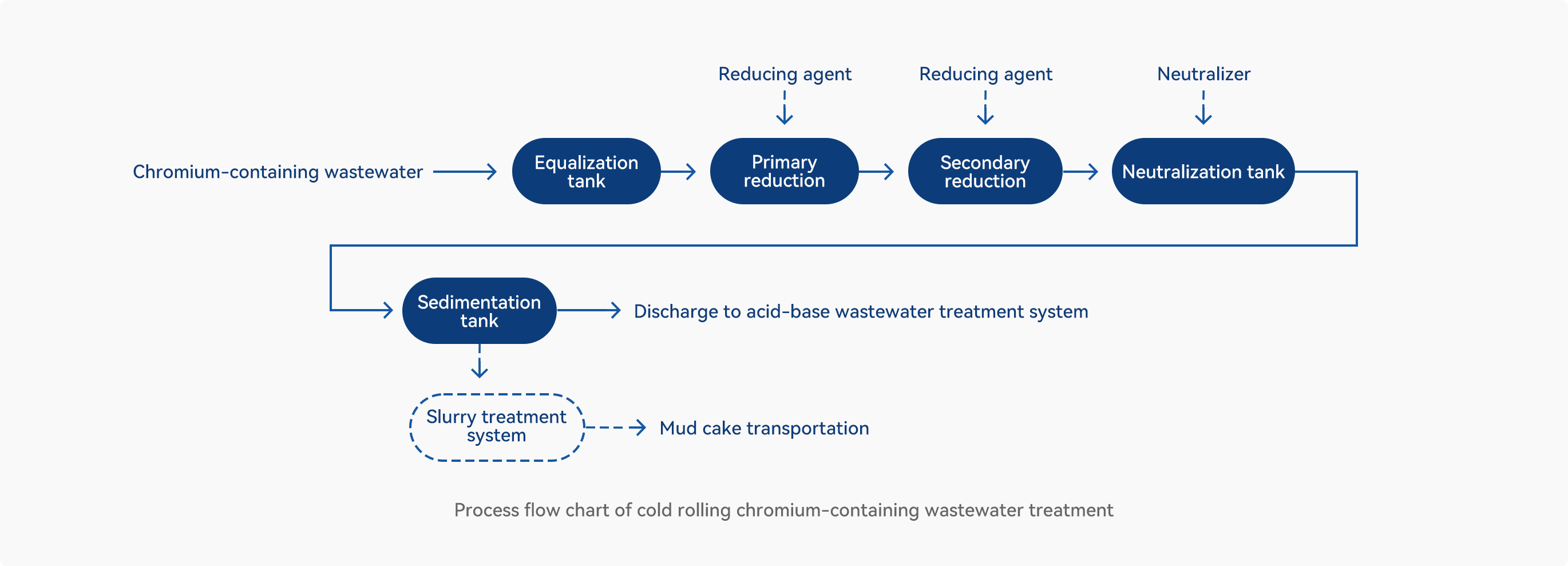

The chromium-containing wastewater is suitable to be treated by the process shown in Figure 18. After adjustment and two-stage reduction, when Cr⁶⁺ in the effluent is less than 0.5mg/L, adjust the pH and then send it to the acid-base wastewater treatment system.

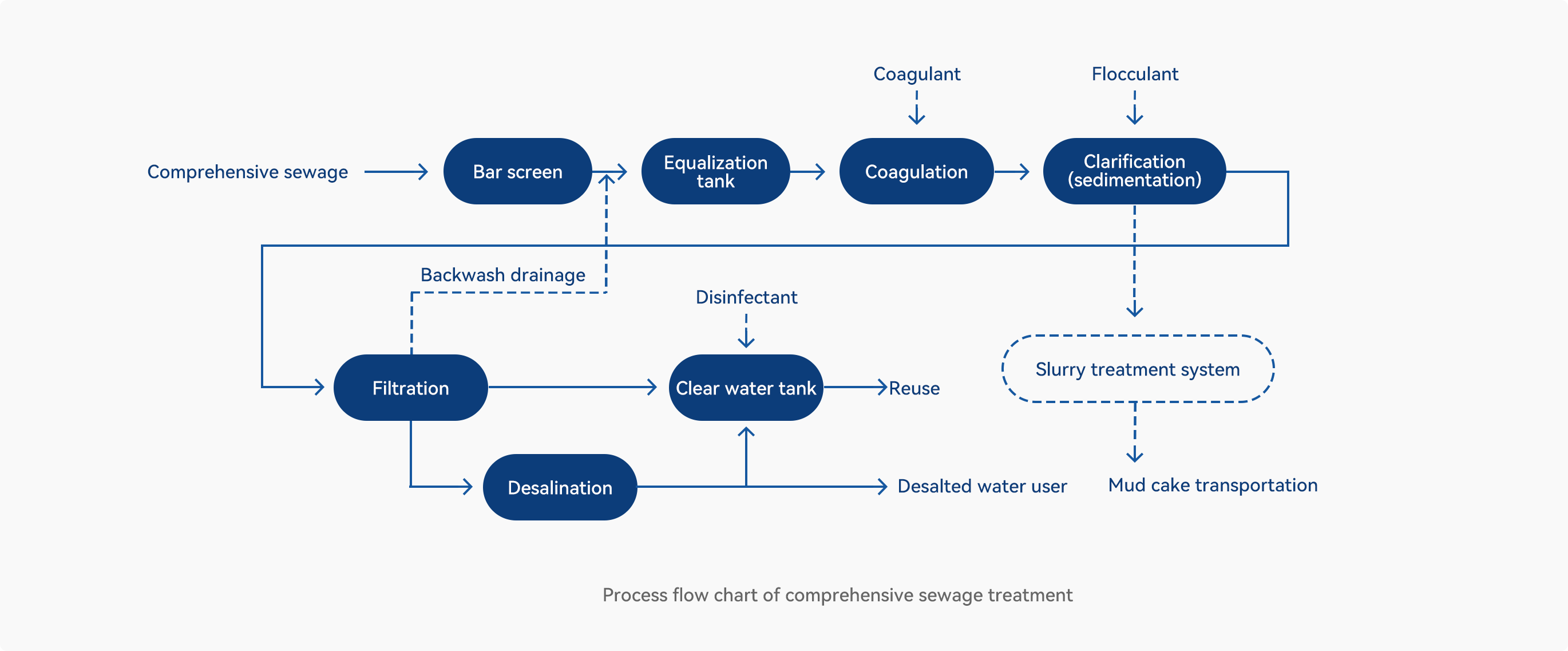

The comprehensive sewage treatment process is suitable to adopt the physical and chemical treatment process, and be reused after being treated by the process shown
