Industry cases - Industrial wastewater treatment and reuse

Pharmaceutical

Characteristics of medical and pharmaceutical wastewater

—— "High toxicity, difficult to degrade, and cannot be directly discharged" high-risk water source

The wastewater in the medical and pharmaceutical industry has the significant characteristics of "many types of pollutants, toxic and difficult to degrade, difficult to treat, and high compliance requirements", and is one of the high-risk wastewater types in environmental protection management:
High toxicity and high difficulty to degrade: The wastewater contains a large number of organic pollutants such as antibiotics, hormones, cytotoxins, solvent residues, API intermediates, etc., which are difficult to effectively degrade by conventional biochemical methods. COD is usually 2,000-10,000mg/L, and BOD₅ is only 20-40% of COD, with poor biodegradability.
Complex and changeable: Water quality and water volume fluctuate violently with frequent changes in product types and processes, the pH range can reach 2-11, the instantaneous pollutant concentration fluctuates by more than 3-5 times, and the shock load is extremely strong.
High nitrogen and high salt: Contains a large amount of ammonia nitrogen (NH₃-N) and salt (Cl⁻, SO₄²⁻), with ammonia nitrogen as high as 200–800 mg/L and conductivity exceeding 10,000 μS/cm, which seriously inhibits microbial activity.
Extremely strict standards: must meet the "Medical Institution Water Pollutant Emission Standard" (GB18466-2005), "Pharmaceutical Industry Water Pollutant Emission Standard" (GB21903-2008) and other regulations, and some projects must also implement local surface water standards or direct reuse requirements, with as many as 20 to 30 control indicators.


Huadian Capabilities

As a technology leader in the field of water treatment general contracting, Huadian has systematic solution capabilities and rich engineering experience in medical and pharmaceutical wastewater treatment, and can provide customers with an overall solution of "high safety + high stability + high removal rate":

Core process integration

For typical wastewater in the pharmaceutical industry, flexible configuration of "pretreatment + oxidation decomposition (Fenton/ozone) + biochemical treatment (UASB+A2/O+MBR) + deep treatment (activated carbon+membrane separation)" can achieve COD removal rate >95% and ammonia nitrogen removal rate >90%.

Shock-resistant design

Adopt equalization tank + intelligent water balance system to cope with instantaneous water quality fluctuations and ensure continuous and stable operation of the biochemical system.

High-difficulty pollution degradation platform

Build a dedicated "advanced oxidation experimental module" to design the optimal treatment path for each type of new pharmaceutical wastewater to improve the removal rate of non-biodegradable pollutants.

Full automatic control + risk warning system

The online monitoring and control platform monitors key factors such as drug residues, volatile organic compounds (VOCs), chromaticity, COD, TN, etc. around the clock to ensure zero omissions and zero environmental risks.

Huadian commitment

Specializing in treating "the most challenging pollution".
Huadian provides full-process protection for the medical and pharmaceutical industry from solution design to system operation, helping customers achieve the dual goals of "safe production + environmental protection compliance" and jointly build a green barrier for a healthy world.

Pharmaceutical industry cases

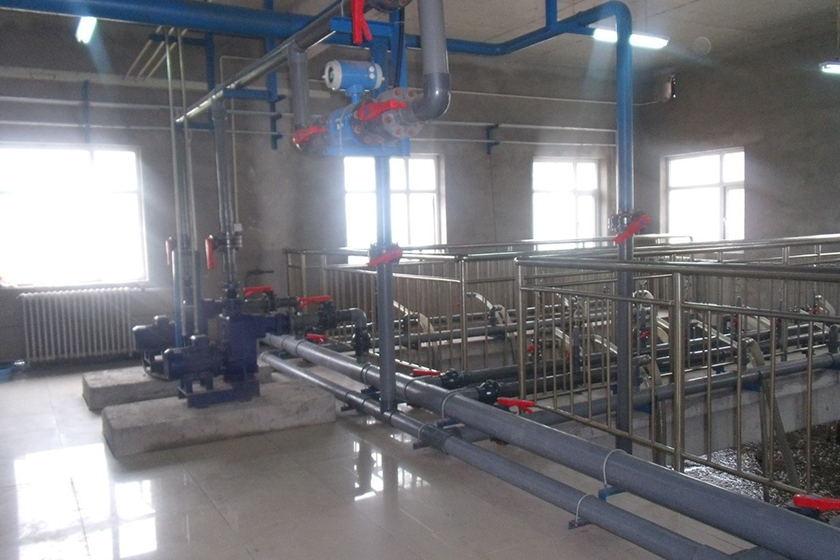

A sewage treatment plant project for a pharmaceutical company

A sewage treatment plant project for a pharmaceutical company

Project type:

General contracting

Project scale and process:

100 tons/day (pharmaceutical wastewater), physical and chemical treatment + biochemical treatment + secondary physical and chemical treatment + sand filtration

Effluent water quality:

pH: 6~9Suspended solids: 50 mg/LBOD5: 20 mg/LCOD: 80 mg/LAmmonia nitrogen: 15 mg/LTotal nitrogen: 30 mg/LTotal phosphorus: 1.0 mg/LTotal organic carbon: 30 mg/LAcute toxicity (HgCl2 toxic equivalent): 0.07 mg/L

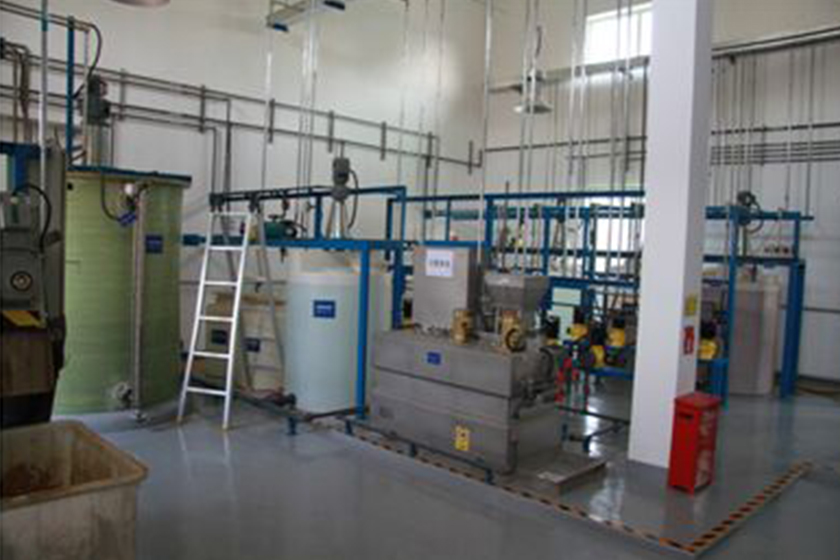

A pharmaceutical enterprise sewage treatment plant project

A pharmaceutical enterprise sewage treatment plant project

Project type:

General contracting

Project scale and process:

750 tons/day (pharmaceutical production wastewater), physical and chemical + anaerobic + biochemical process

Effluent water quality:

Ph: ≤6~9Suspended solids: ≤400 mg/LBOD5: ≤300 mg/LCOD: ≤500 mg/LAmmonia nitrogen: ≤45 mg/LTotal nitrogen: ≤70 mg/LTotal phosphorus: ≤8 mg/L

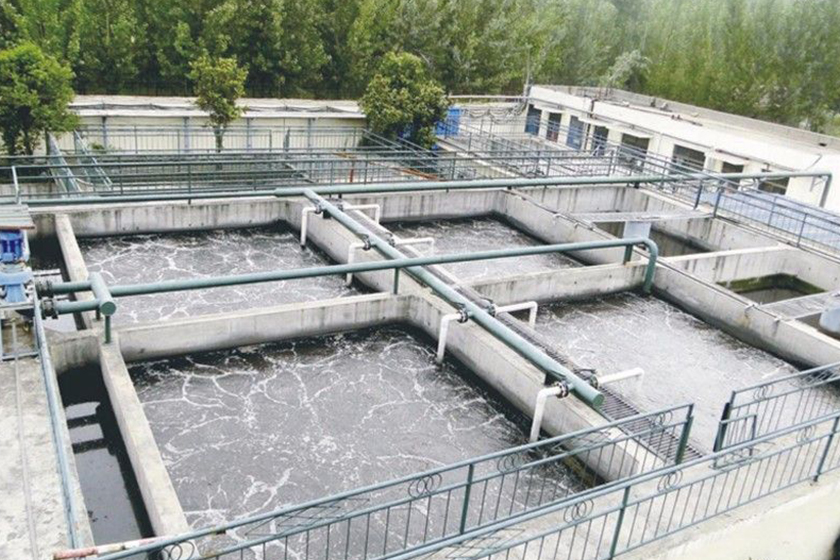

A pharmaceutical enterprise sewage treatment plant project

A pharmaceutical enterprise sewage treatment plant project

Project type:

General contracting

Project scale and process:

500 tons/day (pharmaceutical wastewater), advanced oxidation + biochemical treatment

Effluent water quality:

Ph: ≤6~9Suspended solids: ≤400 mg/LBOD5: ≤300 mg/LCOD: ≤500 mg/LAmmonia nitrogen: ≤45 mg/LTotal nitrogen: ≤70 mg/LTotal phosphorus: ≤8 mg/L

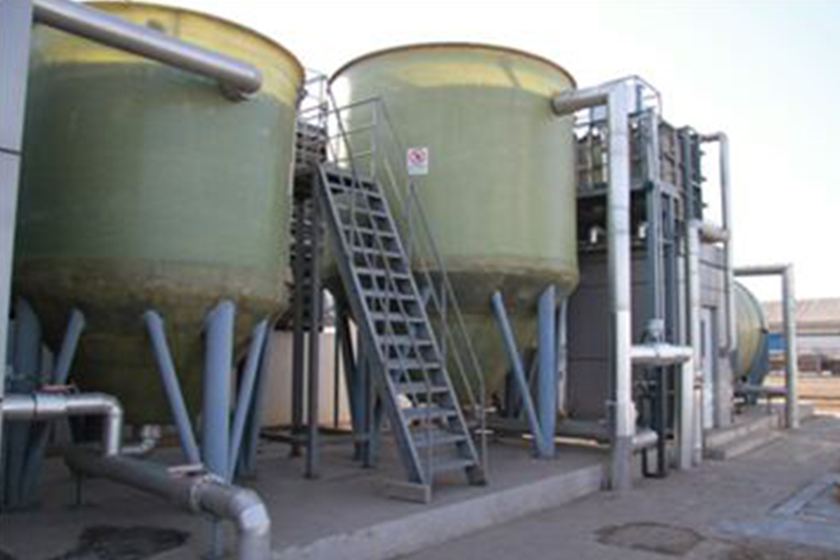

A sewage treatment plant project for a pharmaceutical company

A sewage treatment plant project for a pharmaceutical company

Project type:

General contracting

Project scale and process:

400 tons/day (pharmaceutical wastewater), physical and chemical treatment

Effluent water quality:

Ph: ≤6~9Suspended solids: ≤10 mg/LBOD5: ≤10 mg/LCOD: ≤40 mg/LAmmonia nitrogen: ≤2.0 mg/LTotal nitrogen: ≤15 mg/LTotal phosphorus: ≤0.4 mg/L
New medicine research and development wastewater treatment station project

New medicine research and development wastewater treatment station project

Project type:

General contracting

Project scale and process:

360 tons/day (new medicine research and development wastewater) biochemical process

Effluent water quality:

Ph: ≤6~9Suspended solids: ≤400 mg/LBOD5: ≤300 mg/LCOD: ≤500 mg/LAmmonia nitrogen: ≤45 mg/LTotal nitrogen: ≤70 mg/LTotal phosphorus: ≤8 mg/L

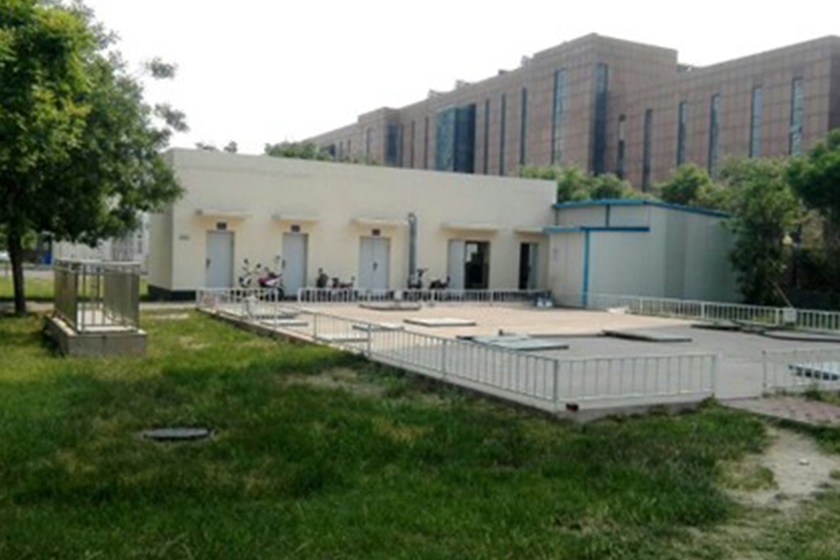

A hospital sewage treatment plant project

A hospital sewage treatment plant project

Project type:

General contracting

Project scale and process:

650 tons/day (hospital wastewater) biochemical process

Effluent water quality:

Ph: 6-9COD: 250BOD: 100Suspended solids: 60Ammonia nitrogen: 15Total mercury: 0.05Total arsenic: 0.5Total lead: 1.0Enterovirus: Not detectableFecal coliform count: 5000MPN/L
A hospital sewage treatment plant project

A hospital sewage treatment plant project

Project type:

General contracting

Project scale and process:

1000 tons/day (hospital wastewater) biochemical process

Effluent water quality:

Ph: 6-9COD: 250BOD: 100Suspended solids: 60Ammonia nitrogen: 15Total mercury: 0.05Total arsenic: 0.5Total lead: 1.0Enterovirus: Not detectableFecal coliform count: 5000MPN/L
